13″ Portable Planer with Helical Style Cutterhead and 2-Speed Feed

$359.99

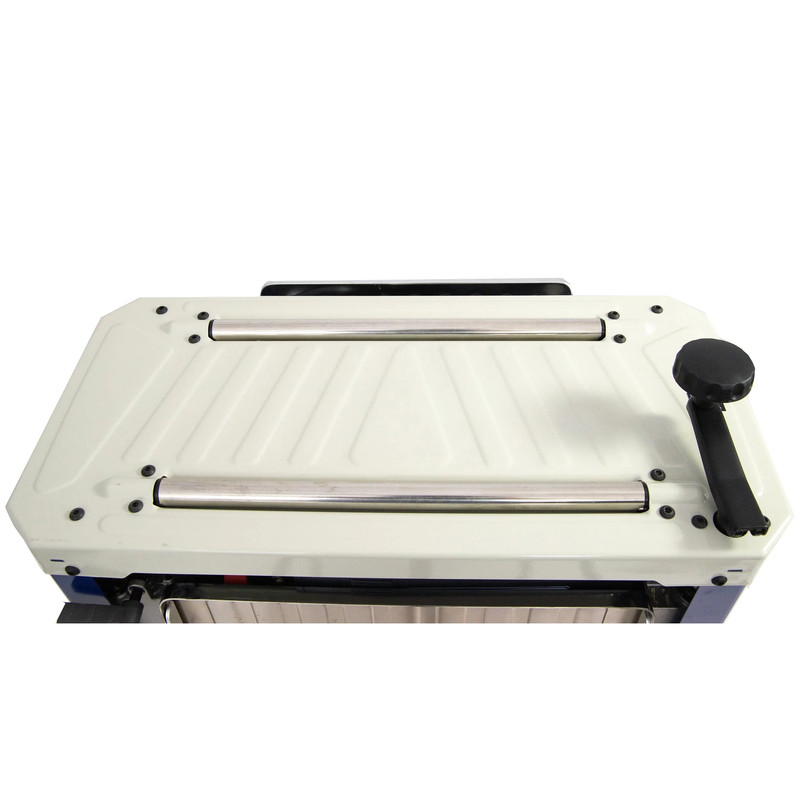

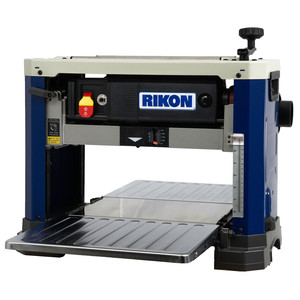

The Rikon® 13″ Portable Planer with Helical Style Cutterhead and 2-Speed Feed – Model: 25-135H benchtop planer features a six row helical-style cutter head and 26 HSS insert cutters. Each indexable knife insert is precision sharpened on two edges and can be easily changed/rotated if damaged or worn – just loosen, rotate, and retighten! The alternating cutter pattern in the cutter head is super-efficient, and with a two-speed feed rate, produces a smooth cut surface. Planer features a threaded 4-post housing for extra head stability when running, side handle for quick table height adjustments, repeat cut setting lever, large fold-up extension tables, flat top with rollers for stock returning, and side carry handles.

Features:

  • Helical Style Cutterhead

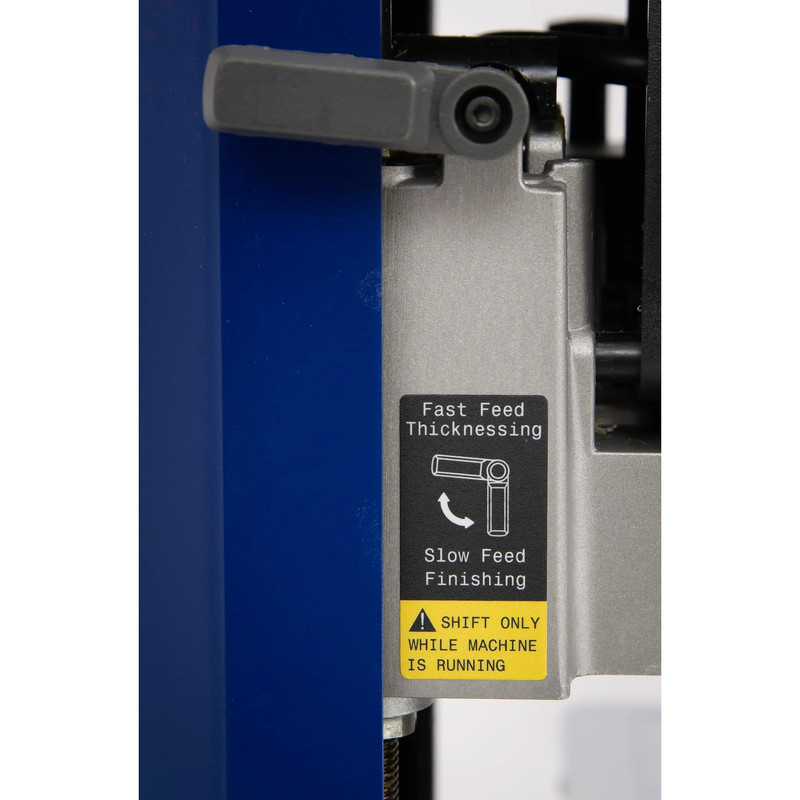

  • 2-Speed Feed Rate
  • All Steel Construction
  • Easy Blade Access
  • Infeed/Outfeed Table Extensions
  • Five year warranty

Specifications:

  • Motor: 15 Amp, 115V, 60Hz
  • Motor Speed: 22,000 RPM
  • Cutterhead: 2″ diameter, 10,000 RPM
  • Number of HSS Inserts: 26, 6 rows
  • Maximum Cut Depth: 1/16″ @ 6″ x 13″ Wide, 1/8″ within 6″ Wide
  • Maximum Cutting Width: 13″
  • Maximum Cutting Depth (Height): 6″
  • Min. Length of Stock: 7″
  • Min. Width of Stock: 3/4″
  • Min. Thickness of Stock: 3/16″
  • Feed Speeds (SF/Min): 16 and 26
  • Table Size: 9-7/16″ L x 13-1/16″ W
  • Extension Tables (2): 12″ L x 14″ W
  • Dust Port (OD): 4″ or 2-1/2″ diameter
  • Dust Collection min CFM: 650
  • Noise Level: 100 dB
  • Unit Height: 19-1/4″
  • Unit Width: 22″
  • Unit Depth: 34-1/4″
  • Base Size: 13-3/8″ L x 22″ W
  • Net Weight: 68 lb.

What’s Included:

  • (1) Rikon® 13″ Portable Planer with Helical Style Cutterhead and 2-Speed Feed
