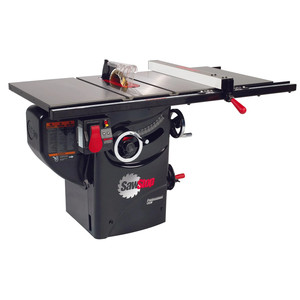

The SawStop® 1.75 HP 10″ Professional Cabinet Saw offers unmatched fit and finish and superior cutting performance to avid hobbyists and small-shop pros. At 110V power, the optimized footprint makes this table saw ideal for the many challenges of a home shop. With SawStop’s legendary safety system, uncompromising quality, and industry-leading dust collection, the PCS™ table saw is the cornerstone of a high-end home shop.

Features:

• SawStop’s patented safety system
• Riving knife reduces the risk of kickback
• Tool-free quick-change blade guard mount
• Diagnostic system ensures the saw is ready to respond
• Micro Blade Guard
• 30″ Premium Fence System provides smooth operation and precise measurement

Specifications:

• Product Type: Cast Iron Table Saw
• Overall Saw Dimensions (W x D x H): 61-3/4″ x 31-1/8″ x 34″
• Cabinet Footprint (W x D): 19-3/8″ x 19-3/8″
• Cast-Iron Table (W x D): 20″ x 27″
• Cast-Iron Table Size with Extension Wings (W x D): 44″ x 27″
• Motor: 1-3/4 HP, 1-phase, 110V, 14A
• Weight: 367 lbs.
• Blade: 40-tooth, professional grade, 5/8″ arbor
• Blade Diameter: 10″
• Blade Tilt: left
• Blade Kerf: 0.118″ (3mm)
• Blade Plate Thickness: 0.078″
• Maximum Depth of Cut – Blade at 0º: 3-1/8″
• Maximum Depth of Cut – Blade at 45º: 2-1/4″
• Maximum Rip – Left of the Blade: 12″
• Dado Diameter: 8″ (requires a separate brake cartridge and table insert)
• Maximum Dado Width: 13/16″
• Arbor Diameter at Blade: 5/8″
• Table in Front of Blade – Maximum Elevation: 10-1/4″
• Table Behind the Blade – Maximum Elevation: 7-1/2″
• Table Flatness Measured Diagonally: 0.010″ maximum gap
• Miter Slots: T-shaped, 3/4″ at top, 1″ at bottom, 3/8″ deep
• Dust-Collection Port Diameter: 4″
• Riving Knife/Splitter Thickness: 0.078″ (2 mm)
• Blade Guard: polycarbonate, extends only 5/8″ to right of blade
• Insert: zero clearance, steel core, ABS surfaces
• Belts: 2 V-ribbed belts – arbor belt is static dissipative

What’s Included:

• (1) SawStop 1.75 HP PCS™ Table Saw Body
• (1) 30″ Premium Fence System
