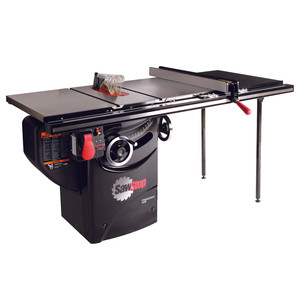

1.75 HP Professional Cabinet Saw – 110V 1-Phase – 36″ Professional T-Glide Fence System

1.75 HP Professional Cabinet Saw – 110V 1-Phase – 36″ Professional T-Glide Fence System

$947.99

SKU: 8469199386 Categories: , , , , ,

The SawStop® 1.75 HP 10″ Professional Cabinet Saw offers unmatched fit and finish and superior cutting performance to avid hobbyists and small-shop pros. At 110V power, the optimized footprint makes this table saw ideal for the many challenges of a home shop. With SawStop’s legendary safety system, uncompromising quality, and industry-leading dust collection, the PCS™ table saw is the cornerstone of a high-end home shop.

Features:

  • SawStop’s patented safety system
  • Riving knife reduces the risk of kickback
  • Tool-free quick-change blade guard mount
  • Diagnostic system ensures the saw is ready to respond
  • Micro Blade Guard
  • 36″ Professional T-Glide Fence System provides smooth operation and precise measurement

Specifications:

  • Product Type: Cast Iron Table Saw
  • Overall Saw Dimensions (W x D x H): 69-1/8″ x 33″ x 34″
  • Cabinet Footprint (W x D): 19-3/8″ x 19-3/8″
  • Cast-Iron Table (W x D): 20″ x 27″
  • Cast-Iron Table Size with Extension Wings (W x D): 44″ x 27″
  • Motor: 1 3/4 HP, 1-phase, 110V, 14A
  • Weight: 408 lbs.
  • Blade: 40-tooth, professional-grade, 5/8″ arbor
  • Blade Diameter: 10″
  • Blade Tilt: left
  • Blade Kerf: 0.118″ (3mm)
  • Blade Plate Thickness: 0.078″
  • Maximum Depth of Cut – Blade at 0º: 3-1/8″
  • Maximum Depth of Cut – Blade at 45º: 2-1/4″
  • Maximum Rip – Left of the Blade: 12″
  • Dado Diameter: 8″ (requires a separate brake cartridge and table insert)
  • Maximum Dado Width: 13/16″
  • Arbor Diameter at Blade: 5/8″
  • Table in Front of Blade – Maximum Elevation: 10-1/4″
  • Table Behind the Blade – Maximum Elevation: 7-1/2″
  • Table Flatness Measured Diagonally: 0.010″ maximum gap
  • Miter Slots: T-shaped, 3/4″ at top, 1″ at bottom, 3/8″ deep
  • Dust-Collection Port Diameter: 4″
  • Riving Knife/Splitter Thickness: 0.078″ (2 mm)
  • Blade Guard: polycarbonate, extends only 5/8″ to right of blade
  • Insert: zero clearance, steel core, ABS surfaces
  • Belts: 2 V-ribbed belts – arbor belt is static dissipative

What’s Included:

  • (1) SawStop 1.75 HP PCS™ Table Saw Body
  • (1) Professional Series 36″ Extension Table
  • (1) T-Glide Pro Fence
  • (1) T-Glide Pro 36″ Rails
