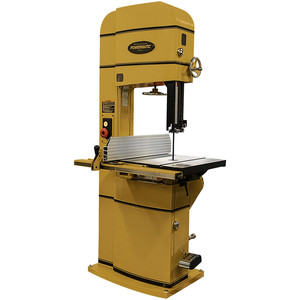

The Powermatic® PM1800B-3 Bandsaw is a professional-grade tool designed for accuracy, durability, and safety in woodworking applications. It features a sturdy cast iron table, trunnion assembly for maximum rigidity, and an exclusive Accu-Fence system that provides complete adjustability for precise cuts. This bandsaw includes a solid steel resaw post, a blade tension release with an electrical interlock and high-end blade guides for stability and accuracy. It also boasts a four-sided blade guard, an integrated foot brake, and a magnetic switch for enhanced safety. Your larger projects and workpieces call for more power, resaw capacity, and cast iron. The PM1800B-3 features legendary quality, precision, and attention to detail, helping woodworkers expand their ambition for over 100 years.

Features:

• Heavy-duty 5 HP motor provides power needed for all projects

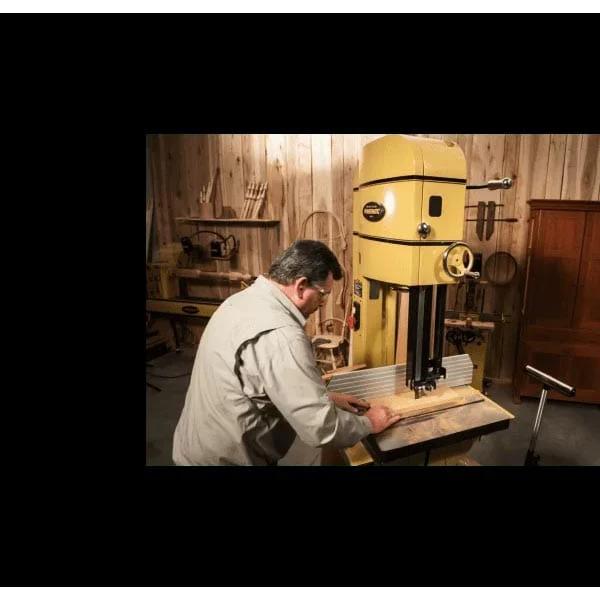

• Fully adjustable, exclusive T-Square style Accu-Fence maximizes alignment to the blade and squaring to the table
• Robust cast iron table and trunnion assembly provides maximum rigidity, offering stability and support for large workpieces
• Positive locking cam with pressure adjustment allows for secure and stable fence positioning, preventing unwanted movement during operation
• Oversized side plate provides versatility by allowing operation in both horizontal and vertical positions

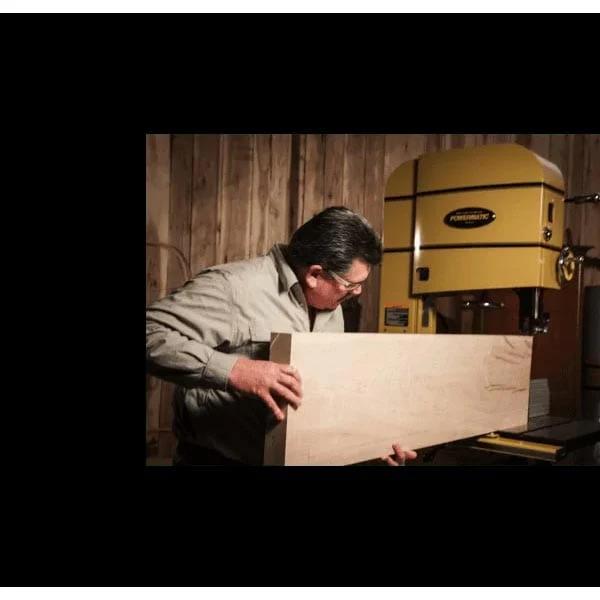

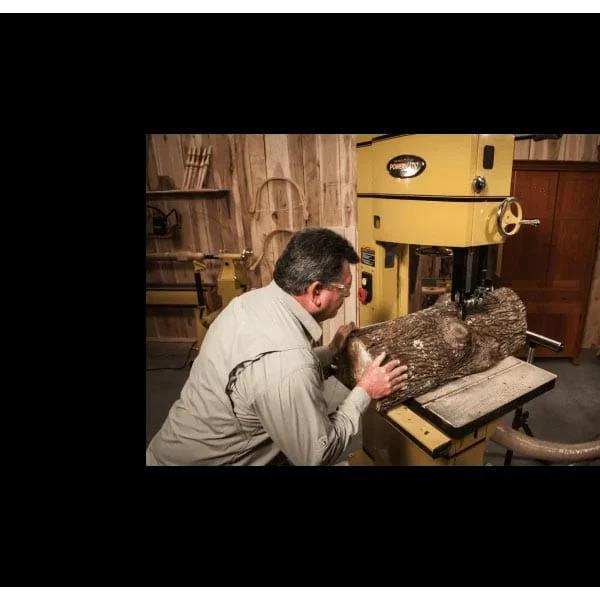

• Solid steel resaw post enhances rigidity, ensuring stability and accuracy during resawing operations
• Blade tension release with an electrical interlock prevents the bandsaw from starting when the blade is de-tensioned
• Heavy-duty upper wheel support and tracking mechanism contribute to smooth operation and precise blade tracking

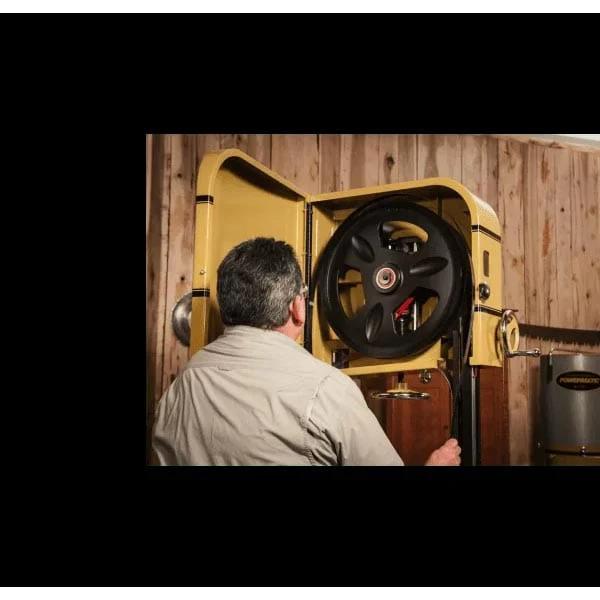

• Solid cast iron wheels reduce vibration and noise while providing the necessary momentum required for heavy resawing, ensuring efficient cutting performance

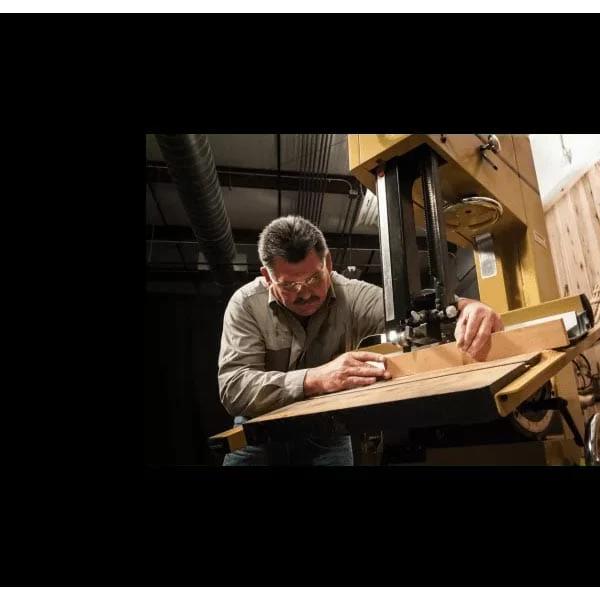

• High-end blade guides with toolless adjustment offer stability, minimizing blade deflection and increasing cut accuracy
• Four-sided blade guard provides optimum protection, ensuring safety during operation by preventing accidental contact with the blade
• Integrated foot brake allows for quick stopping of the blade, enhancing operator safety and control
• Magnetic switch protects the motor from potential harm caused by electrical supply issues, ensuring safe and reliable operation

Specifications:

• Style: Floor Model
• Motor Type: TEFC (totally-enclosed fan-cooled), induction, capacitor start
• Motor Power: 5 HP
• Motor Current: 15 / 7.5A
• Motor Phase : 3 Ph
• Motor Voltage: 230 / 460V
• Prewired Voltage: 230V
• Recommended Circuit Size: 20A
• Wheel Diameter: 18″
• Blade Length: 160″
• Blade Speed: 2300/4400 SFPM
• Cutting Capacity Height: 18″
• Cutting Capacity Width: 18″
• Dust Collection Minimum CFM Required: 600 CFM
• Dust Port Outside Diameter: 4″
• Maximum Saw Blade Width: 1-1/2″
• Minimum Saw Blade Width: 1/8″
• Miter Gauge Positive Stops : 45°, 90°
• Overall Dimensions (L x W x H): 38″ x 42″ x 81-1/2″
• Table Height from Floor: 38″
• Table Size (L x W): 24″ x 27″

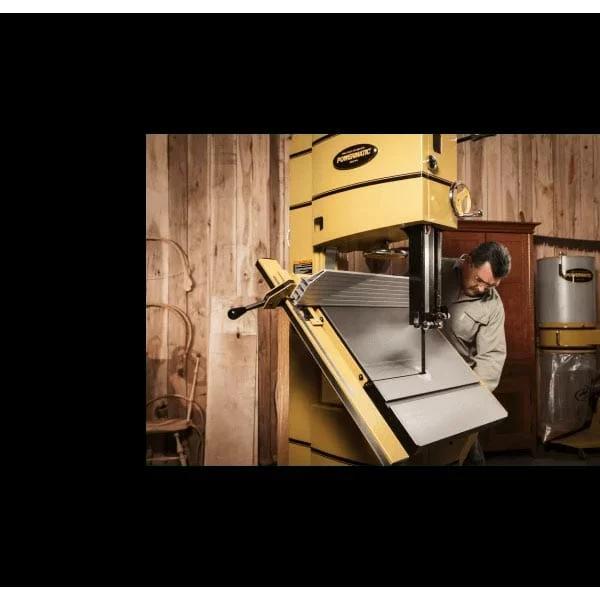

• Table Tilt: 10° Left, 45° Right
• Table T-Slot: 3/4″

What’s Included:

• (1) Powermatic – PM1800B-3 18″ Woodworking Bandsaw
• (1) Hook Type Bandsaw Blade – 160″ x 3/4″ x 4 TPI x 0.03″
