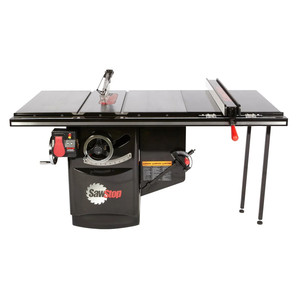

5HP 3PH 480V Industrial Cabinet Saw with 36″ Industrial T-Glide Fence System
$1,646.99
The SawStop® Industrial Cabinet Saw is the definition of industrial grade. It is the heaviest, most powerful and highest quality 10″ cabinet saw available. The 5 HP, 3 PH, 480V configuration with a 36″ Industrial T-Glide Fence Assembly offers the durability, versatility, and the peace of mind only SawStop’s patented safety system can provide.
Specifications
- 36″ Rip Fence with T-Glide Fence assembly
- Cast Iron Table: 24″ W x 30″ D
- Motor: 5HP – 3 PH Electric, 480V, 5.8A
- Extension Wings: 10″ W x 30″ D each
- Extension Table: 24″ W x 30″ D
- Cabinet footprint: 20′ W x 25″ D
- Weight: 635 lbs. Fence included
- Blade size: 5/8″ arbor 10″ Diameter
- Left Tilt
- Blade kerf: 0.118″ (3 mm)
- Blade Plate Thickness: 0.078″ (2 mm)
- Max depth of cut: 2-1/4″
- Max rip right of blade: 36-1/2″
- Max rip left of blade: 12-1/2″
- Dado Diameter: 8″ and requires separate brake cartridge and insert
- Dado max width: 13/16″
Includes
- Cast Iron Extension Wings
- miter Gauge
- Dust Collection Blade Guard
- Riving Knife
- Blade Wrenches – 2 each
- Push Stick
- 10″ Blade
- Standard Brake Cartridge
- 3 mm Hex Key
- 5 mm Hex Key
- 8 mm Hex Key
- Hardware Packs
- Blade Spacing adjustment tool
- Owner’s Manual
5 HP – 3PH 480 Volt requires special electrical services
Shipping / Billing Information
This product ships direct from the manufacturer:
- Your order will ship in approximately 5 business days.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
Inspect all freight shipments at time of delivery. If damage or missing pieces, are suspected, please note on driver paperwork.
Return Information
SawStop does not accept returns. If your shipment was damaged, please refuse shipment and call SawStop’s customer service department at 503-595-2665.
Warranty Information
SawStop warrants that their saws are free from defects in materials and workmanship for a period of two years from the purchase date, and covers their motors for a period of 5 years. If you have a warranty question, please contact SawStop customer service @ 503-582-9934.
