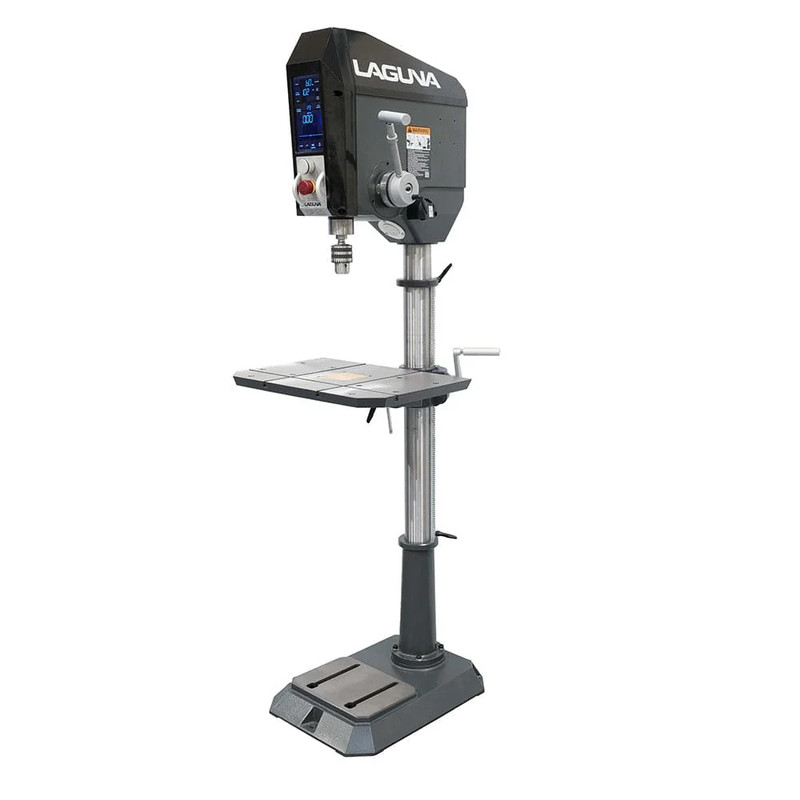

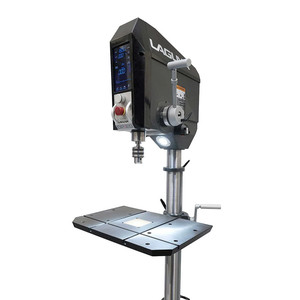

DP:20 – 20″ Drill Press with Touchscreen – 1-1/2 HP

DP:20 – 20″ Drill Press with Touchscreen – 1-1/2 HP

$599.99

SKU: 1926923691 Categories: , , , , , ,
The DP:20 is the latest innovation in our classic line, engineered for industrial-grade performance. At its heart is a robust 1.5 hp Pulse Width Modulation (PWM) motor, delivering constant torque across a full speed range of 60 to 3600 RPM, making it perfect for the most demanding applications in wood, metal, plastics, and other material applications. The state-of-the-art Touch Screen Smart Panel, featuring a unique blue LCD digital readout, provides real-time RPM, Load, and Quill Depth, enhancing functionality and aesthetics. The large 3-3/4″” x 6-7/8″” touch screen is a standout feature among drill presses in this range, surpassing competitors with its size and touch capability. Experience unparalleled efficiency with the Auto-Start function, which activates the drill press when the quill is lowered and stops it when raised. Achieve perfect, repeatable drilling depth with the electronic depth setting or mechanical depth stop. Safety is paramount with a chuck key holder with a sensor that locks out the Auto-Start function during bit changes. The Auto Reverse function is also a standout feature, exclusively used for tapping to automatically reverse the tap when it reaches the preset depth.

Features:

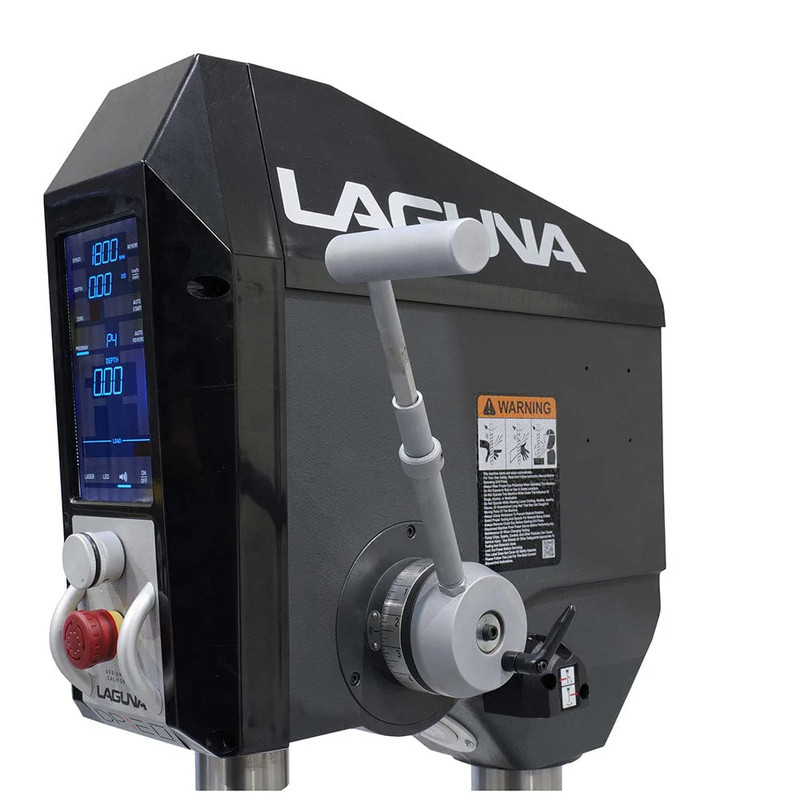

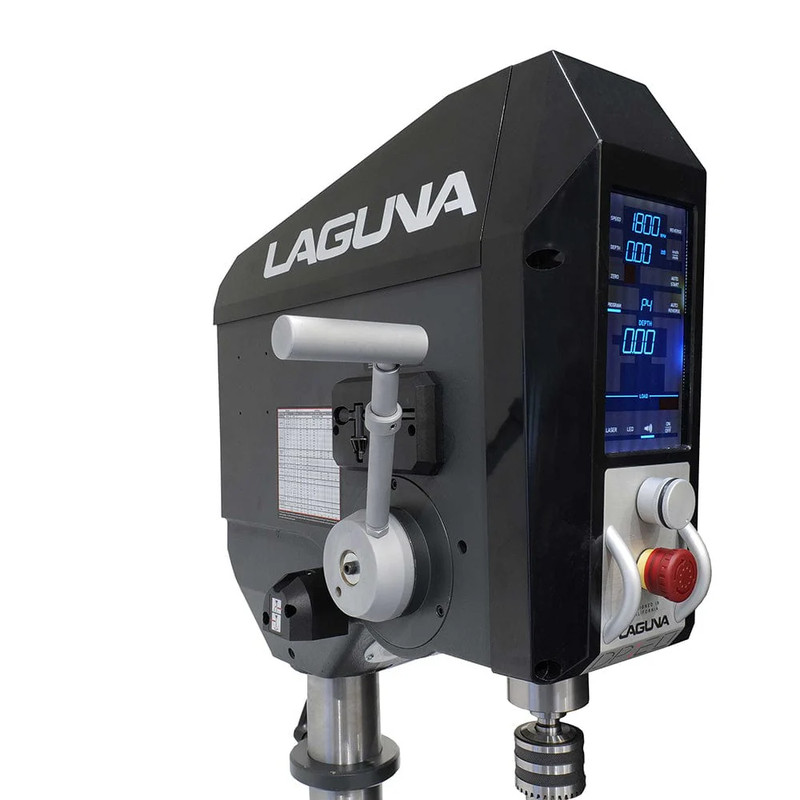

  • Touch Screen Smart Panel: Intuitive interface with blue LCD digital readout
  • 1.5 hp PWM Motor: Constant torque with forward and reverse functions
  • Auto-Start Function: Starts and stops with the movement of the quill

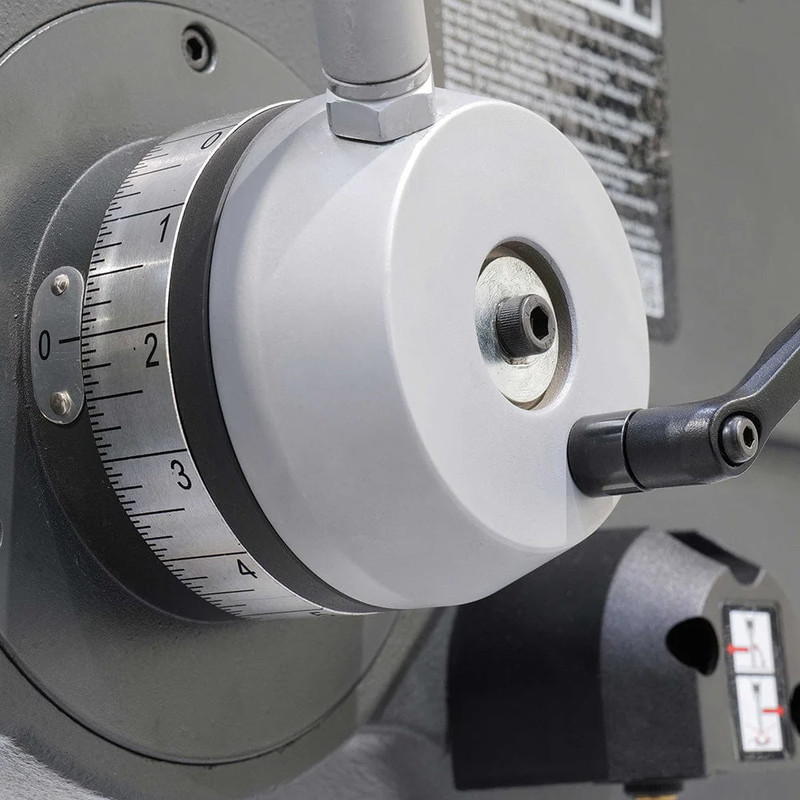

  • Precision Depth Control: Electronic depth setting

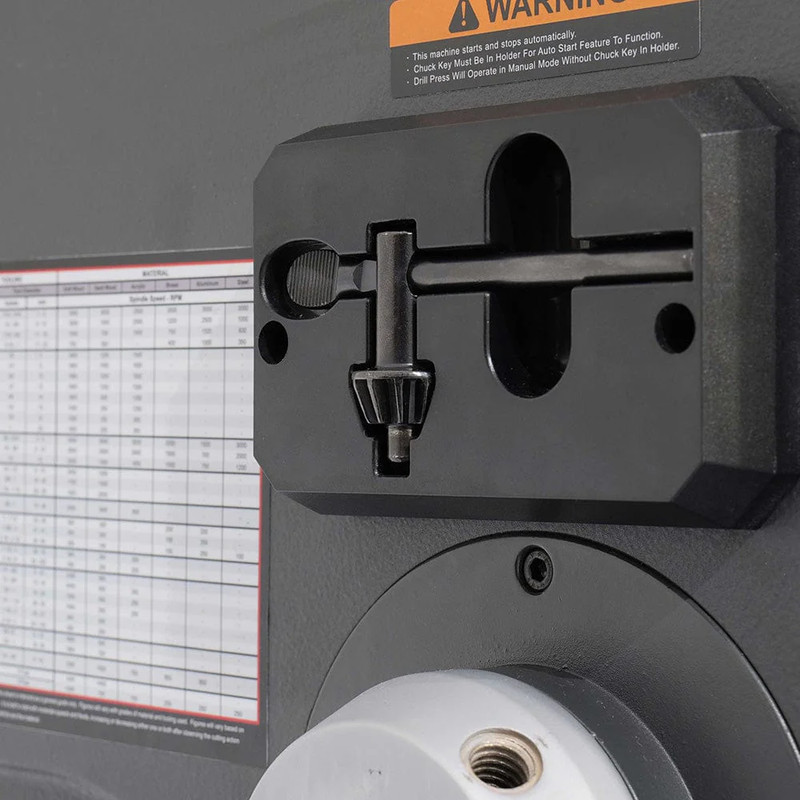

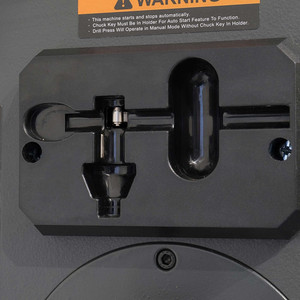

  • Advanced Safety Features: Chuck key holder with a sensor that locks out Auto-Start function during bit changes
  • Customizable Memory Settings: Five programmable speed and depth settings
  • Extended Quill Travel: 6 inches of precise drilling capacity

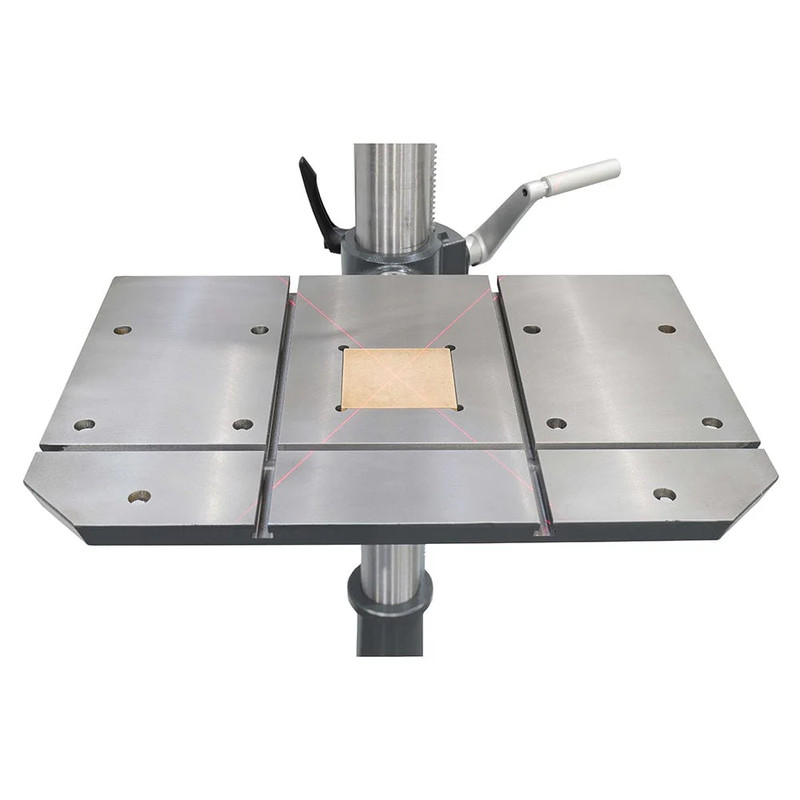

  • Versatile Worktable: Large 15” x 22” cast iron table tilts up to 90 degrees left and right, rotates 360 degrees, with T-slots and 10 clamping holes
  • High-Output LED Work Light: Onboard 5W LED for optimal visibility.
  • Crosshair Lasers: Ensures precise material positioning.
  • Modern Design: Sleek aesthetic from headstock to table control handles.
  • User-Selectable Screen Increments: Displays in Fractional Inch, Decimal Inch, or Decimal Millimeter.
  • Experience the pinnacle of performance and modern design with the DP20 Drill Press, designed to meet the needs of the most demanding applications.

Specifications:

  • Motor Voltage/hp: 115V/1.5HP
  • Breaker: 15 amp. min.
  • Power Cord: 72” (1830 mm)
  • Table, cast iron: 15”x22” (380 mm x 560 mm)
  • Table Tilt: +/- 90 Degrees
  • Table Swivel: 360 Degrees
  • Laser Light: Included
  • Working Light: LED, 5W
  • Swing: 20” (510 mm)

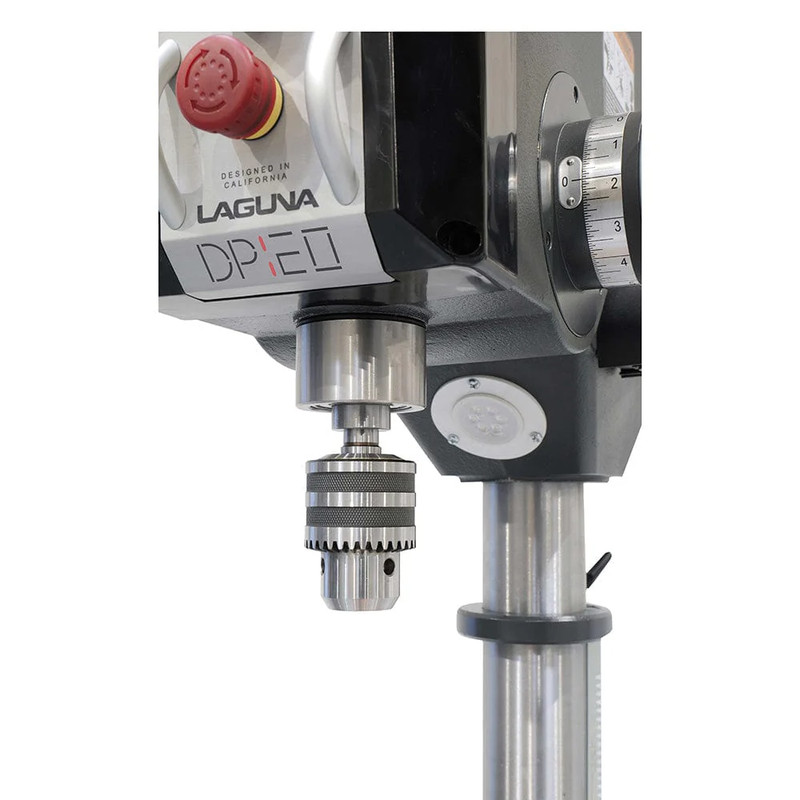

  • Spindle Taper: MT2
  • Spindle Travel: 6” (152.4 mm)
  • Chuck: 5/56” – 5/8” (2-16 mm)
  • Quill Diameter: 2.17” (55 mm)
  • Quill Flange/Collar Diameter: 2.6” (66 mm)
  • Spindle to Column, max.: 10” (255 mm)
  • Spindle to Table, max.: 29-5/16” (745 mm)
  • Spindle to Base: 49.5” (1257 mm)
  • Spindle Speed Range: 60-3600 RPM (electronic & variable)
  • Column Diameter: 3.15” (80 mm)
  • Machine Dimensions (LxWXH) vertical, base footprint: 23-7/8”x17”x72.5” (607 mm x 432 mm x 1842 mm)
  • Weight, Gross: 326 lbs. (148 kg)
  • Wright, Net: 304 lbs. (138 kg)
  • Package Size (WxDxH) horizontal: 72.5” x 28.5” x 20” (1840 mm x 725 mm x 406 mm)
  • Industrial Work Light: One LED included within headstock

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 7-21 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
  • Liftgate and Residential Delivery is covered with the excess weight fee, and the freight company will call the day before delivery to set up a time at no charge to you.

Return Information

Laguna does not accept returns. If your shipment was damaged, please refuse delivery, for defective items, please contact Woodcraft Supply customer service @ 1-800-535-4482.

Warranty Information

New woodworking machines sold by Laguna Tools carry a two-year warranty effective from the date of shipping. Laguna bandsaw blades’ welds are backed by their 1-yr manufacturer’s warranty. Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship, parts and materials. Laguna Tools will repair or replace, without charge, any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect. They require that the defective item/part be returned to Laguna Tools with the complaint. In the event the item/part is determined to be damaged due to lack of maintenance, cleaning or misuse/abuse, the customer will be responsible for the cost to replace the item/part, plus all related shipping charges.

For warranty repair information, call 1-800-332-4094.
