This Magswitch™ 6″ GripRight 150 Switchable Magnet secures fixtures, fences or jigs in place at a 90° angle to magnetic ferrous tables (e.g., bandsaw, drill press, etc.). Rotate the knob to turn on and off 145 pounds of magnetic hold force. Simply drill two 10-32 holes in your fixture or fence and attach with the enclosed hardware.

• Make custom 90° jigs, fixtures or fences perpendicular to your work surface by drilling two 10-32 holes and attaching to the GripRight magnets using the enclosed hardware.
• Attach as many magnets to your fixtures as you want for as much strength and flexibility as you need. We recommend use of two per fixture to avoid pivot.
• Designed with screw holes to allow attachment of fixtures, jig and fences.
• Magnet turns completely on and off.
• Does not use an electrical power source.

• Max Breakaway: 145 lb on 1″ steel
• Maximum Shear: 20.45 lb
• Dimensions: 2.25″ x 1.25″ x 1.56″

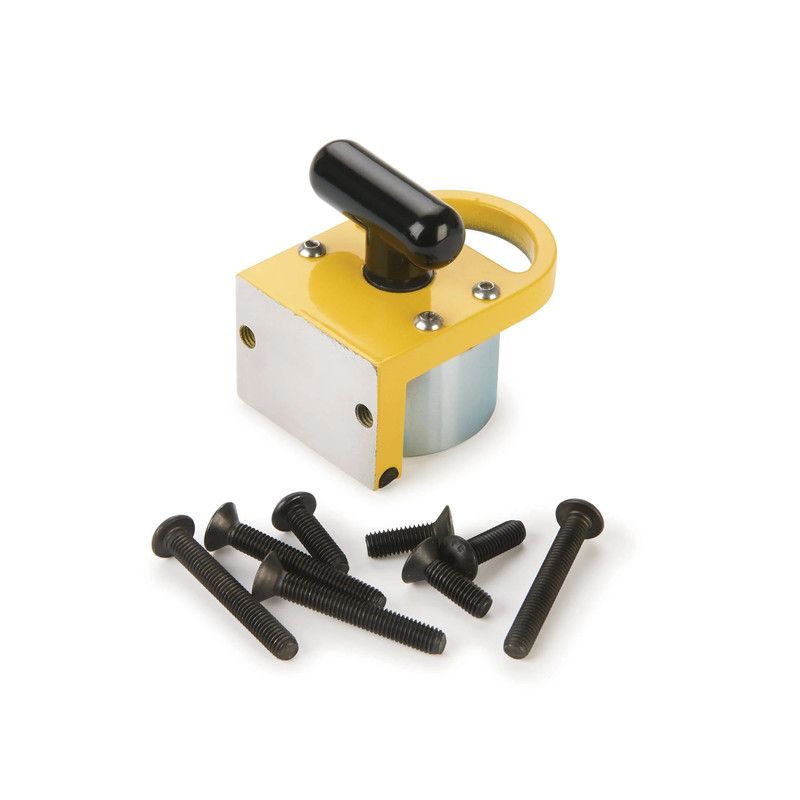

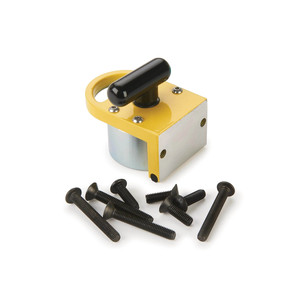

• (1) GripRight 90° Switchable Magnet
• (2) 10-32 x 5/8″ pan head screws
• (2) 10-32 x 5/8″ flat head screws
• (2) 10-32 x 1-3/8″ pan head screws
• (2) 10-32 x 1-3/8″ flat head screws
