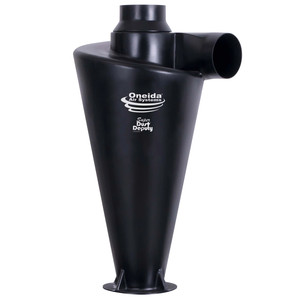

Use the Oneida Air Systems® Molded Super Dust Deputy XL Cyclone to turn your inefficient single-stage bag collector into a two-stage cyclone system using your existing blower. Get the available drum kit, or use your own – any size or shape as long as it’s airtight. High efficiency cyclone separates 99% of wood waste before the filter, resulting in virtually no filter clogging or reduction in airflow. Reduced filter maintenance and no dusty bags to empty.

Features:

• Prevents both fine dust and large debris from reaching your dust collector
• High efficiency cyclone separates 99% of wood waste before the filter
• Virtually eliminates filter clogging, suction loss, and significantly prolonging the lifespan of your filter
• Lightweight molded resin has low center of gravity
• Compact footprint with simple installation
• Static dissipative construction safely conveys static charge build-up to the electrical ground, preventing harmful discharges

Specifications:

• Airflow Rating: Minimum 850 CFM
• Height: 37-1/2″
• Width: 19″
• Depth: 18″
• Weight: 8-1/2″ lb
• Discharge Size: 10″ OD (6″ ID)
• Inlet Size: 6-1/4″ OD (6″ ID)
• Outlet Size: 6-1/4″ OD (6″ ID)
• Color: Black
• Primary Build Materials: Static Dissipative Polyethylene
• Retrofits on 3 HP – 5 HP single-stage dust collectors

What’s Included:

• (1) Molded Super Dust Deputy XL Cyclone
• (1) Assembly Gasket
• (1) Lid Hardware

Notes:

• This item is molded cyclone only. Drum kits are optional, or get creative and use your own!
