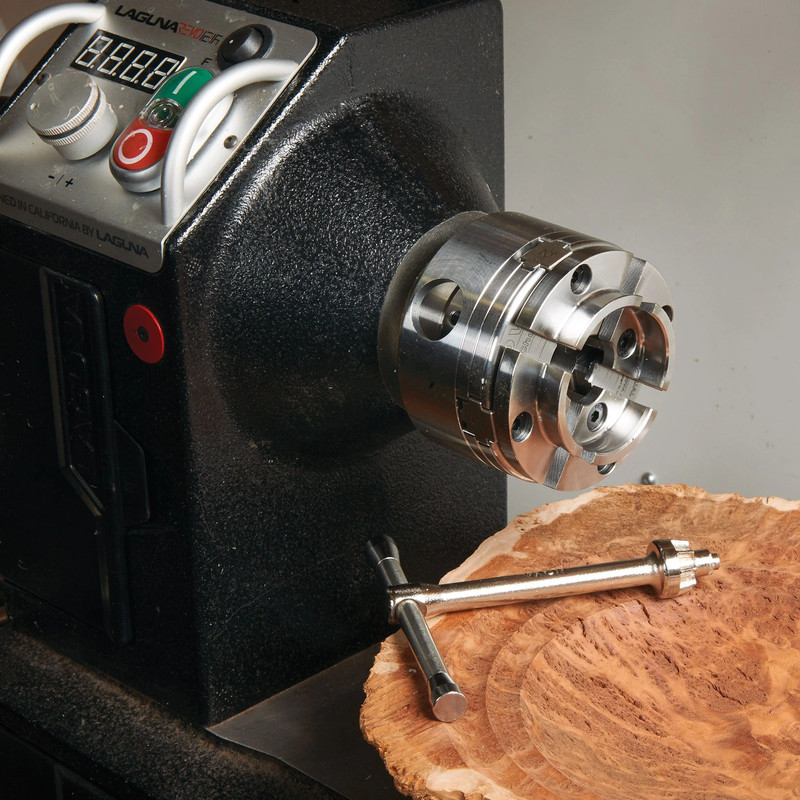

This chuck’s small size and weight minimize the load on smaller spindles and bearings, making it ideal for mini, midi and smaller lathes up to a 14″ diameter swing. The powerful geared TuffLock™ Grip with precise, hardened gear action delivers a solid, vibration-free performance, and the chuck key has a fast, positive location, which is easy and comfortable to use. Chuck requires purchase of a threaded insert adapter to fit on a lathe’s spindle. Chuck body is approximately 3-3/8″ diameter, depth is 1-3/4″ and weight is only 3 lbs. Handles up to 12″ diameter bowls and turnings with up to a 6″ long spigot when using the standard 2″ (50 mm) jaws. Includes chuck body, 50 mm jaws, T-handled chuck key, manual and fasteners.

Features:

• TuffLock™ Grip with precise, hardened gear action delivers a solid and vibration-free performance
• Convenient one-handed operation with T bar handle – more time turning, less time preparing
• Chuck key has fast, positive location, easy and comfortable to use
• Open back for easy cleaning and to reduce weight on smaller lathe spindles
• Precision machined from single solid steel billet for maximum performance
• Special Nova dovetail profile on jaws grips wood fibers firmly
• Auto Safety Stop feature prevents the jaw slides from protruding past the chuck body
• Small, compact design minimizes load on small spindles and bearings
• Designed for mini, midi and smaller lathes with up to a 14″-diameter swing
• Fits a full range of Nova Chuck accessories

Specifications:

• Model Number: Nova Tool – 48286
• Chuck Body Diameter: Approximately 3-3/8″
• Chuck Body Depth: 1-3/4″
• Chuck Body Weight: 3 lb.
• Bowl Capacity: Up to 14″ (350 mm) diameter bowls using included standard 2″ (50 mm) jaws
• Spigot Capacity: Up to 6″ length spigots using included 2″ jaws (50 mm)
• Designed for use on mini, midi and smaller lathes with up to 14″ (400 mm) diameter swing
• Construction: 1045 High Tensile Steel

What’s Included:

• (1) Nova Lite G3 Chuck Insert Version
• (1) Set of Standard 2″ (50 mm) Accessory Jaws
• (1) Set of fasteners
• (1) T-handled chuck key
• (1) Wrench
• (1) Manual

Notes:

• Threaded inserts sold separately
• Chuck requires purchase of a threaded insert adapter to fit on a lathe’s spindle.
