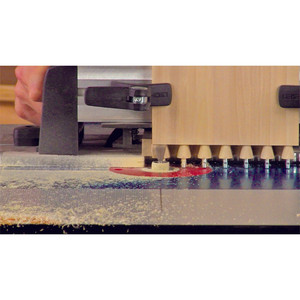

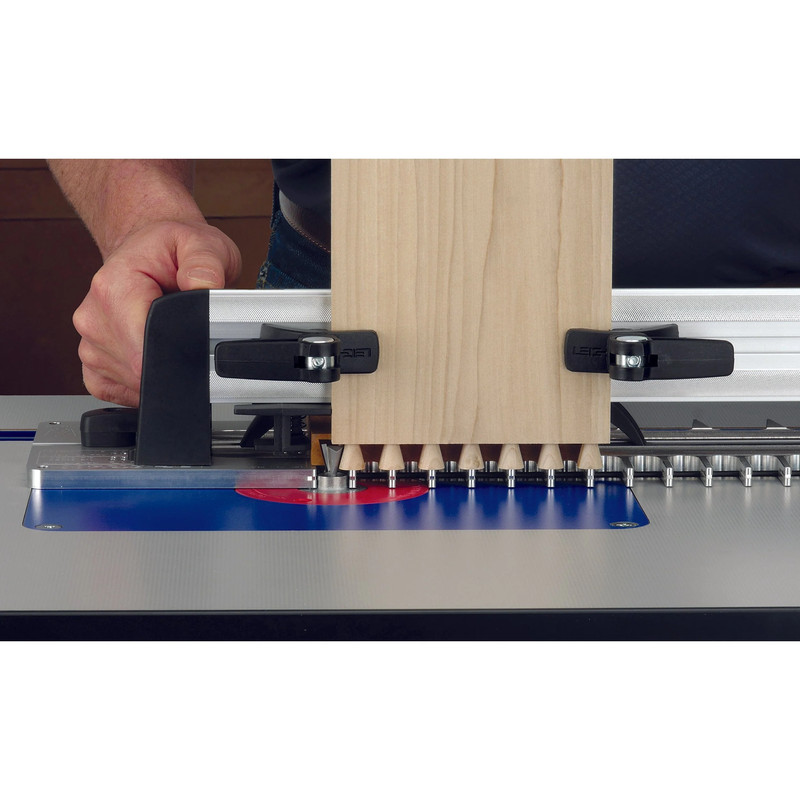

Leigh’s RTJ400 Router Table Dovetail Jig is designed specifically for router table use. The RTJ400 offers fast and accurate routing of through dovetails, box joints and half-blind dovetails on your router table. The Leigh template is precision CNC machined from aircraft grade aluminum for perfect joinery every time. Versatility is a key feature of the RTJ400. It makes 9 sizes of through dovetails, 3 sizes of half-blind dovetails and 4 sizes of box joints. Perfect joint fit is guaranteed and repeatable, with the patented Leigh e10 guide bushing. Standard equipment includes: CNC machined template; adjustable side-stop for all joint types; cam clamps; 1/2″ x 14º and 1/2″ x 13/16″ x 8° dovetail bits; 3/8″ x 1-1/4″ and 1/2″ x 1-1/4″ straight bits; e10 elliptical guide bushing; quick reference strips and fully illustrated user guide.

Features:
• CNC machined template for absolute precision
• Elliptical e10 guide bushing is adjustable for recordable joint fit adjustment
• Cam-action clamps provide strength and adjustable width clamping
• Adjustable side-stop for varying board widths with built-in offset for rabbeted drawer fronts
• Up to 16″ board width; half-blind DT 1/2″-1″ board thickness; box joints and through DT 1/8″-1″
