Whiteside® Undersized Plywood Dado Router Bits are sized to exactly match today’s nominal plywood thicknesses. Make everything fit just right. No more dadoes that are too sloppy or too tight. Each 1/2″ shank bit allows you to make dados with different thicknesses of plywood.

Features:

• Perfect for cabinet construction using typically undersized plywood
• Set consists of a 7/32” bit for 1/4” plywood, a 31/64” bit for 1/2” plywood, and a 23/32” bit for 3/4” plywood
• Precision ground for proper balance at high RPM

Specifications:

• SC218: a solid carbide straight bit used for cutting dadoes in 1/4″ plywood
• Shank (SC218): 1/2″
• Diameter (SC218): 7/32″
• Cut Length (SC218): 3/4″
• Overall Length (SC218): 2-3/4″
• 1065A: a carbide-tipped straight bit for cutting grooves, dadoes and mortising in 1/2″ plywood
• Shank (1065A): 1/2″
• Diameter (1065A): 31/64″
• Cut Length (1065A): 1″
• Overall Length (1065A): 2-5/8″
• 1083A: a carbide-tipped standard straight bit for cutting grooves, dadoes and mortising 3/4″ plywood
• Shank (1083A): 1/2″
• Diameter (1083A): 23/32″
• Cut Length (1083A): 1″
• Overall Length (1083A): 2-1/2″

What’s Included:

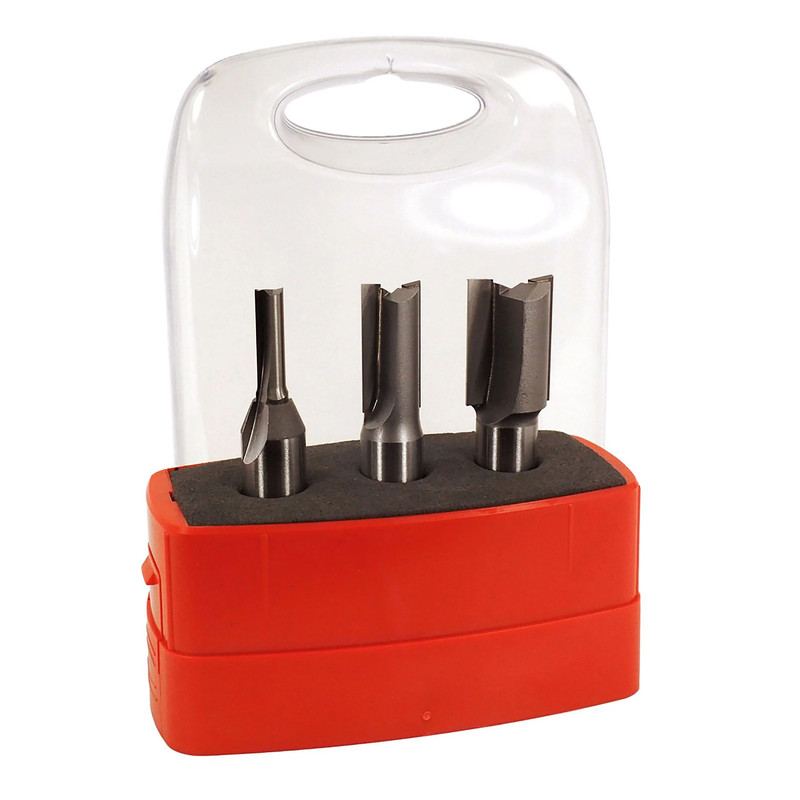

• (1) Whiteside® Undersized Plywood Dado Router Bit Set – 3 Piece
